SmallRig Advanced V Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B

SIRUI Professional BCT-3203 Video Tripods are built to handle the rigors of studio and field use:

• Multi-tube design provides increased stability and vibration reduction.
• Precision built aluminum spiders are lightweight, yet offer superior load capacity.
• 10 Layer 100% Carbon Fiber legs for light weight and enhanced vibration reduction.
• Oversized leg locks provide fast, easy adjustments - even when working with gloves.
• Includes adjustable ground and center spreader, dual stainless steel spikes for use outdoors and rubber feet for use on stone or wooden surfaces.
• For video heads with 100mm ball.

Technical info:

• Material - Carbon Fiber
• No of sections - 3
• Max leg diameter - 25mm
• Min leg diameter - 19mm
• Min height - 445mm
• Max height - 1600mm
• Lenght folded - 750mm
• Weight - 4,4 Kg
• Max load - 18 Kg

Ražotaja numurs BCT-3203

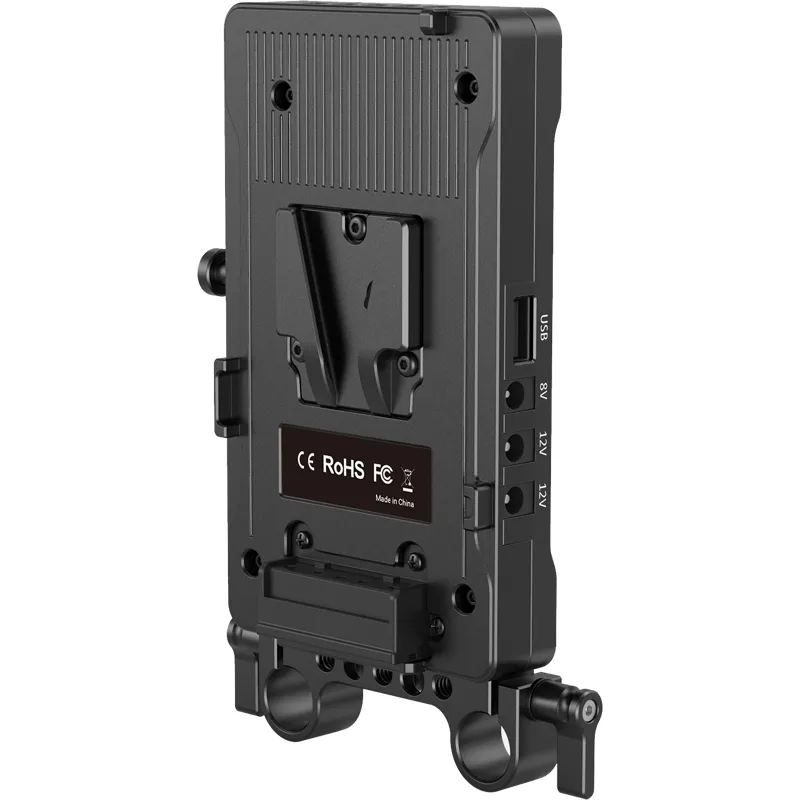

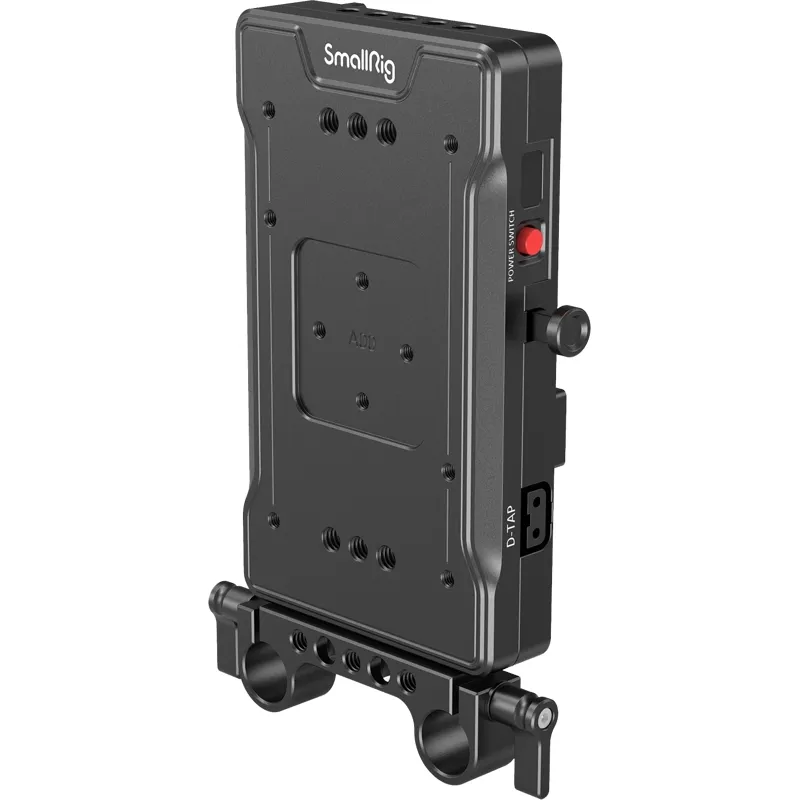

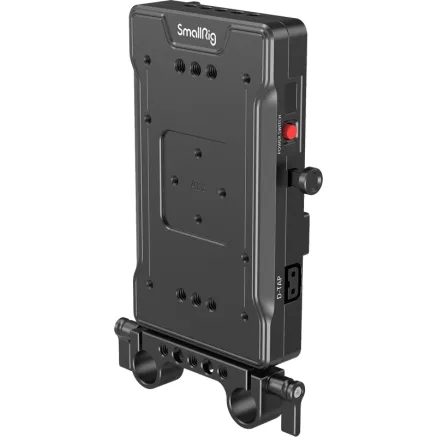

SmallRig V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3203 is designed to provide greater battery life to your camera rig via a V mount battery. The plate utilizing a standard V mount fits most V mount batteries. It gives an 8V DC output port, two 12V DC output ports, a 14.8V D-Tap output port, and a 5V/2A USB output port to power your camera and other external accessories like a monitor, a phone, etc. via a V mount battery. It features a power switch that controls all of the output ports to power-on or power-off your rig more quickly and conveniently. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system and multiple 1/4”-20 thread holes on the back, top, and bottom, to attach a dual rod clamp, a magic arm or other accessories.

Key Features:
1. The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig.
2. The plate provides different output ports, including an 8V DC output port, two 12V DC output ports, and a 14.8V D-Tap output port.
3. The plate provides a 5V/2A USB output port to power a phone or a wireless video transmitter via a V mount battery.

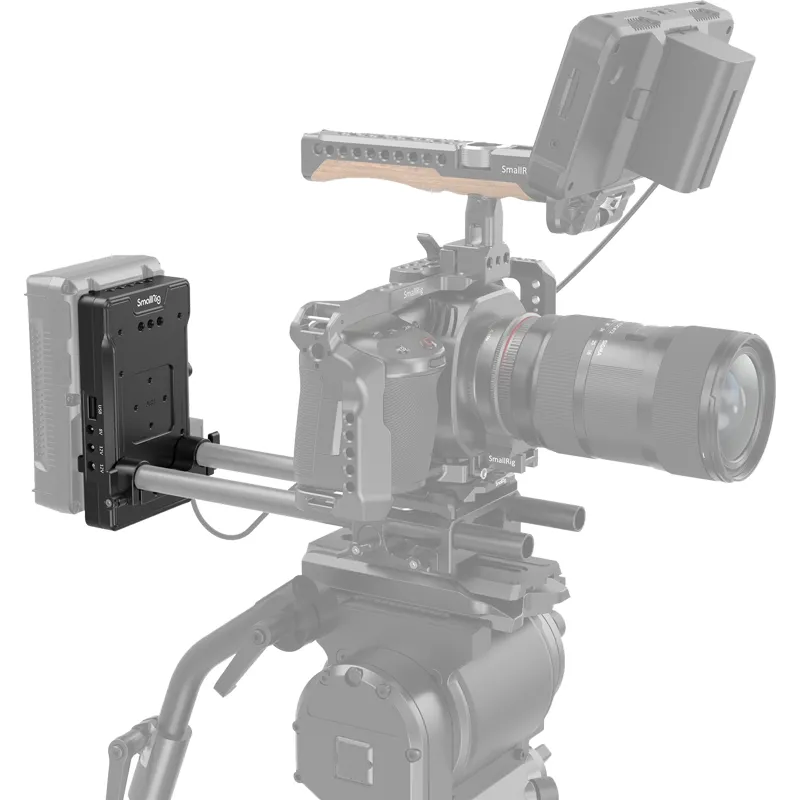

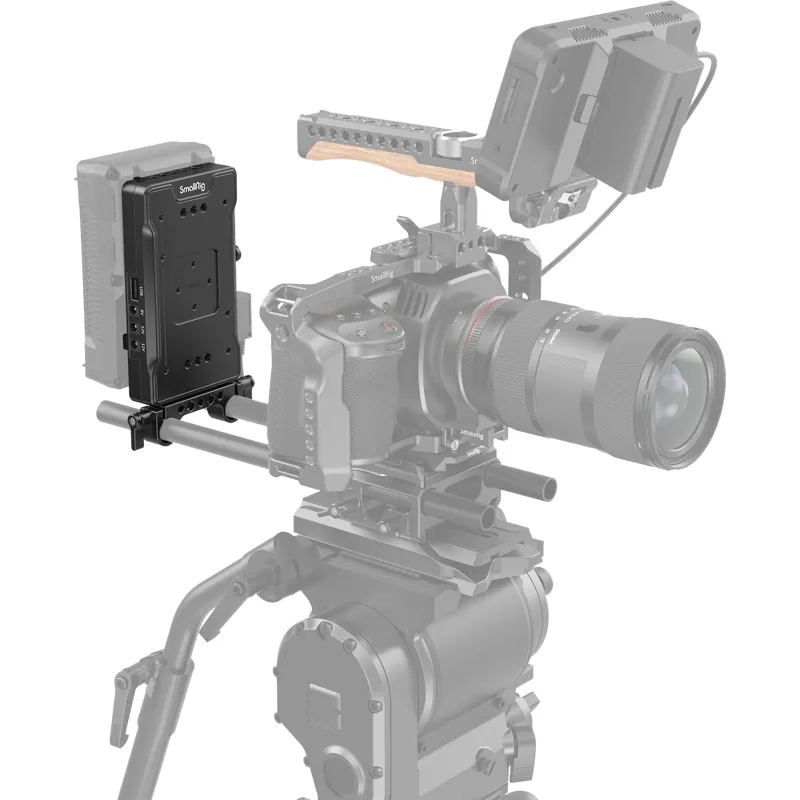

4. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system.
5. It features multiple 1/4”-20 thread holes on the back, top, and bottom to attach a dual rod clamp, a magic arm, or other accessories.

Note:
1. Do not use in damp environment to avoid short circuit;

Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

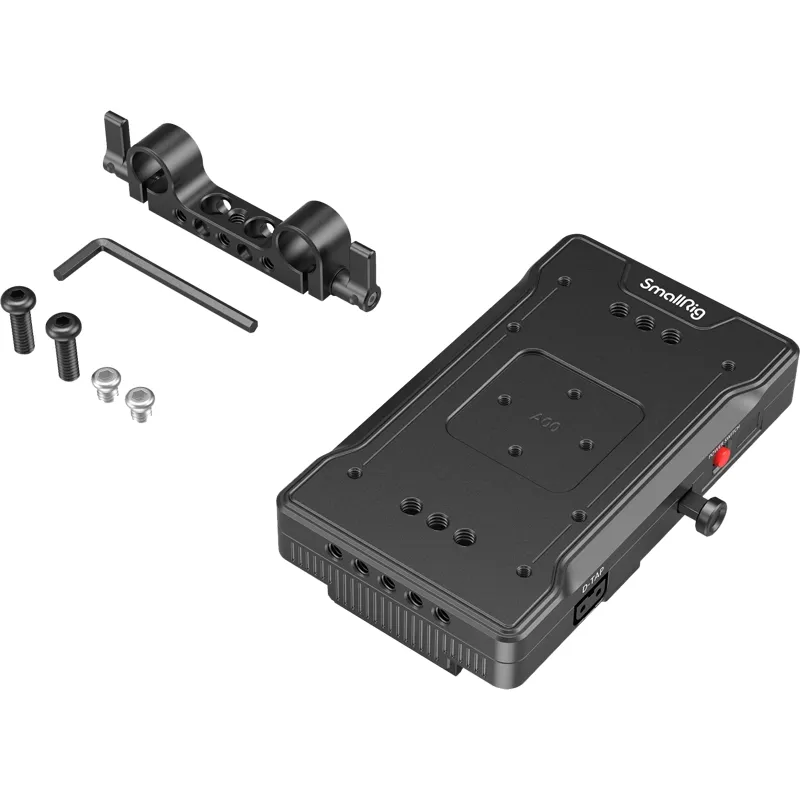

Package Includes:
1 x V Mount Battery Adapter Plate
1 x Dual 15mm Rod Clamp
1 x Allen Wrench
4 x Mounting Screw

Product Dimensions: 168.7 x 108 x 33mm
Package Dimensions: 175 x 180 x 49mm
Net Weight: 324g±5g
Package Weight: 474g±5g
Material(s): Aluminum Alloy
