Meike Extension Tube Set Eco for Nikon

Product Overview

The Meike Extension Tube Set Eco for Nikon consists of three extension tubes designed to enhance the macro photography capabilities of compatible lenses without compromising image quality. These tubes maintain full compatibility with the camera's metering system, requiring no exposure compensation, and support autofocus functionality when using the new AF drive system.

Macro Photography Enhancement

This set includes three hollow spacer rings that fit between the camera body and lens, allowing closer focusing distances and larger subject magnification. Since the tubes contain no optical elements, they do not degrade lens quality. They are especially effective with telephoto lenses. All automatic camera functions remain operational. The tubes can be used individually or combined to increase magnification progressively.

Working Principle

Extension tubes increase the distance between the camera's image sensor and the rear element of the lens, reducing the minimum focusing distance and increasing magnification. The maximum magnification with an extension tube is calculated as:

Maximum magnification = lens magnification factor + (tube length in mm / lens focal length in mm)

Example Calculations with an 85mm Lens (magnification factor 0.13):

• With 12mm tube: 0.13 + (12 / 85) = 0.27
• With 20mm tube: 0.13 + (20 / 85) = 0.37
• With 36mm tube: 0.13 + (36 / 85) = 0.55
• With all three tubes combined (68mm): 0.13 + (68 / 85) = 0.93

Note: Using all three tubes stacked results in approximately 2 stops of light loss.

Features

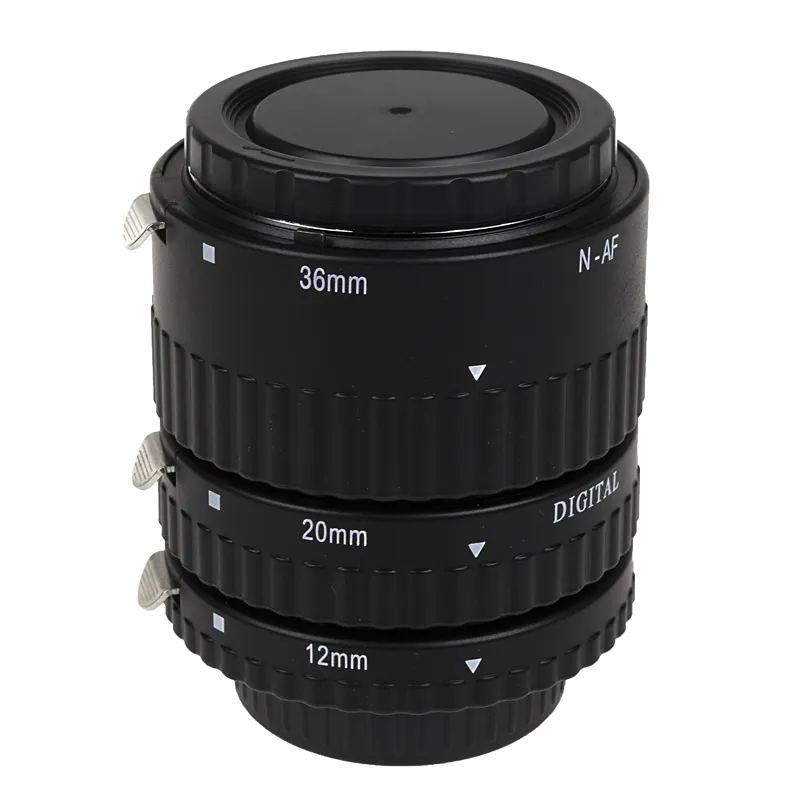

• Set of three plastic extension tubes (12mm, 20mm, 36mm)
• Enables closer focusing and greater subject magnification
• Does not affect lens optical quality
• Maintains all automatic camera functions including autofocus
• Tubes can be used separately or combined for variable magnification
• Includes a 2-year warranty

Package Contents

• 12mm Extension Tube
• 20mm Extension Tube
• 36mm Extension Tube
